Precise internal construction
High-precision components made from quality materials ensure reliable operation and a long service life.

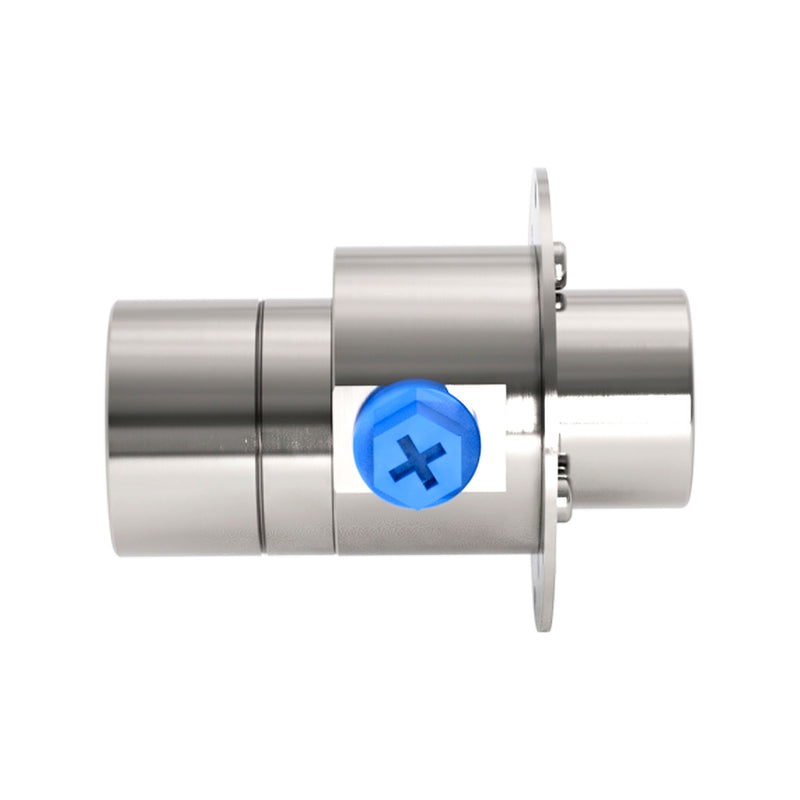

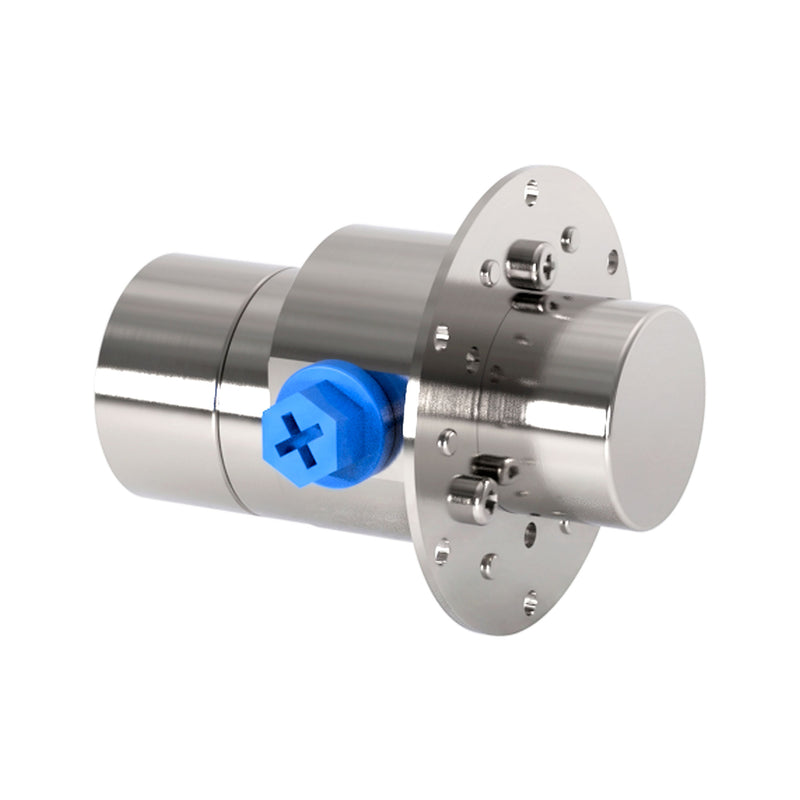

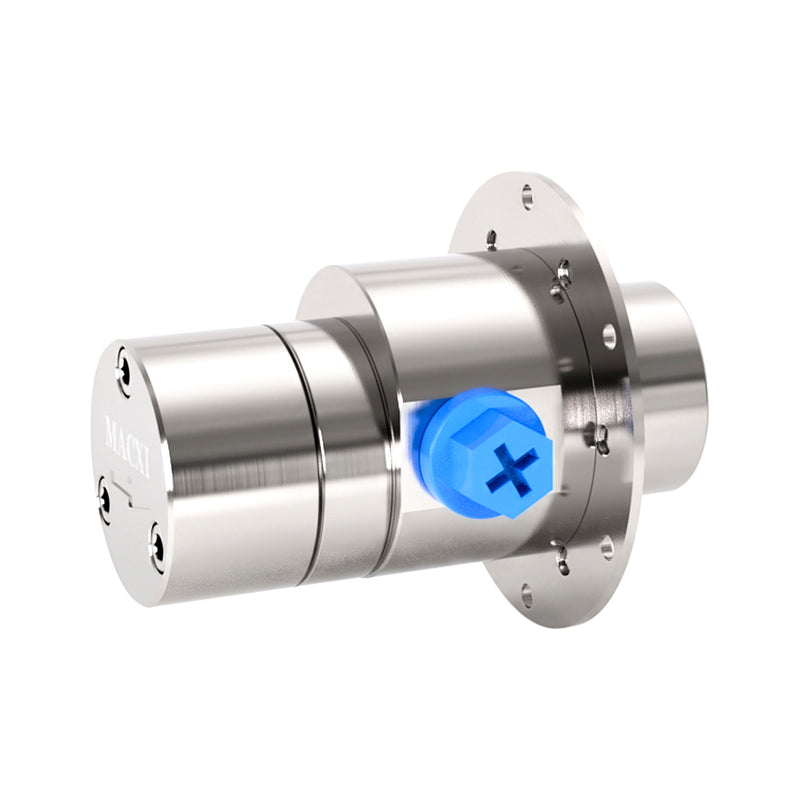

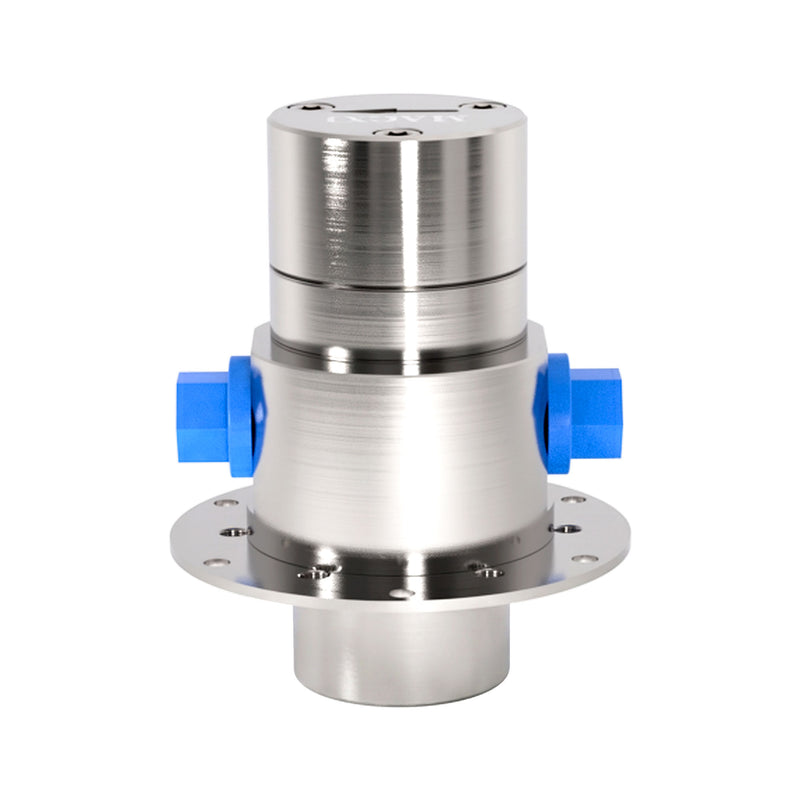

Macxi 0.60 cm³/rev magnetic gear pump
Hermeticity | High precision
Magnetic drive ensures fully hermetic operation
Stable fluid supply with minimal deviations
Materials are resistant to aggressive environments
OEM support and customization for your needs
Technical Specifications
Offset
0.6 cm³/rev
Pump casing material
316L (stainless steel)
Gear material
PEEK (Polyetheretherketone)
Seal material
FKM (fluoroelastomer)
Bushing material
PEEK (Polyetheretherketone)
Bearing material
Temperature range
-40℃~70℃
Maximum pressure (bar)
10 bar
Differential pressure when operating on water (bar)
8 bar
Areas of application
Chemical Industry
Pharmaceutical industry
Quantitative Dosing Systems
Food industry
Energy industry
High-pressure equipment

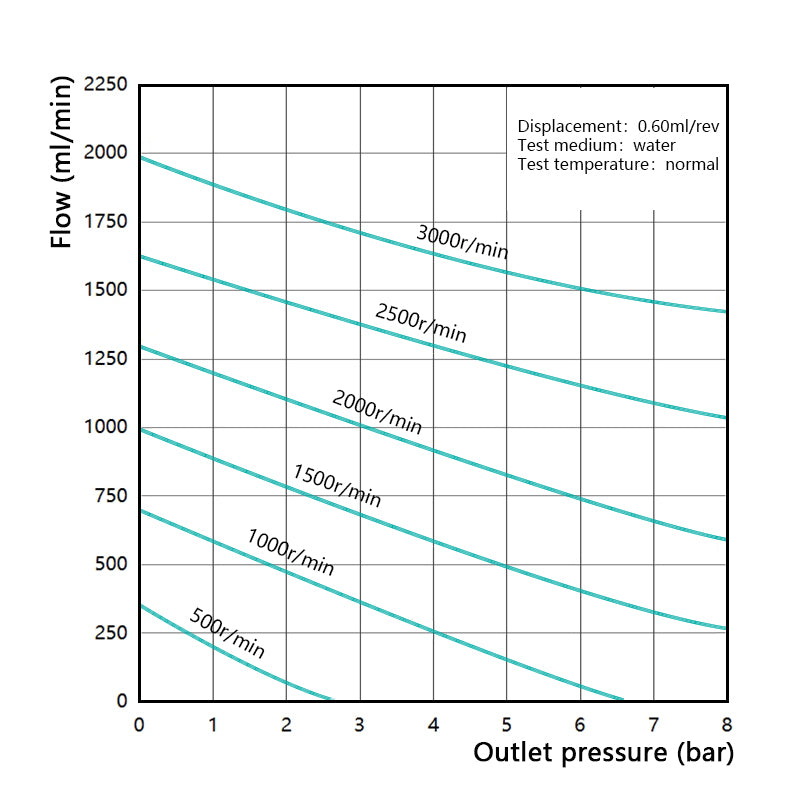

Characteristic Curves for This Product
Characteristic curves for products of the same series with different displacements
Additional materials
Pump casing material
Hastelloy/titanium alloy
Gear material
/
Seal material
PFA/EPDM/FFKM
Bearing material
/
Adjustable temperature
-40°C~120°C
Custom Solutions
- We can suggest the optimal pump configuration based on your specific operating conditions.
- Materials
- Interfaces
