Magnetic Gear Pump MG: Design and Leak-Free Operation
Introduction
The MG series magnetic gear pump is an industrial positive displacement pump designed for pumping chemical, aggressive, and high-precision fluids.
The main feature of this design is the complete absence of mechanical seals, which eliminates working medium leaks and increases equipment reliability.
This article discusses the design of the MG pump and explains its hermetic operation principle.
1. General Characteristics of the MG Magnetic Pump
The MG magnetic gear pump is a positive displacement pump in which torque is transmitted through a magnetic coupling without a direct mechanical connection between the motor and the working chamber.
The pump design eliminates the use of gland packing and mechanical seals, which reduces the risk of leaks and improves equipment stability.

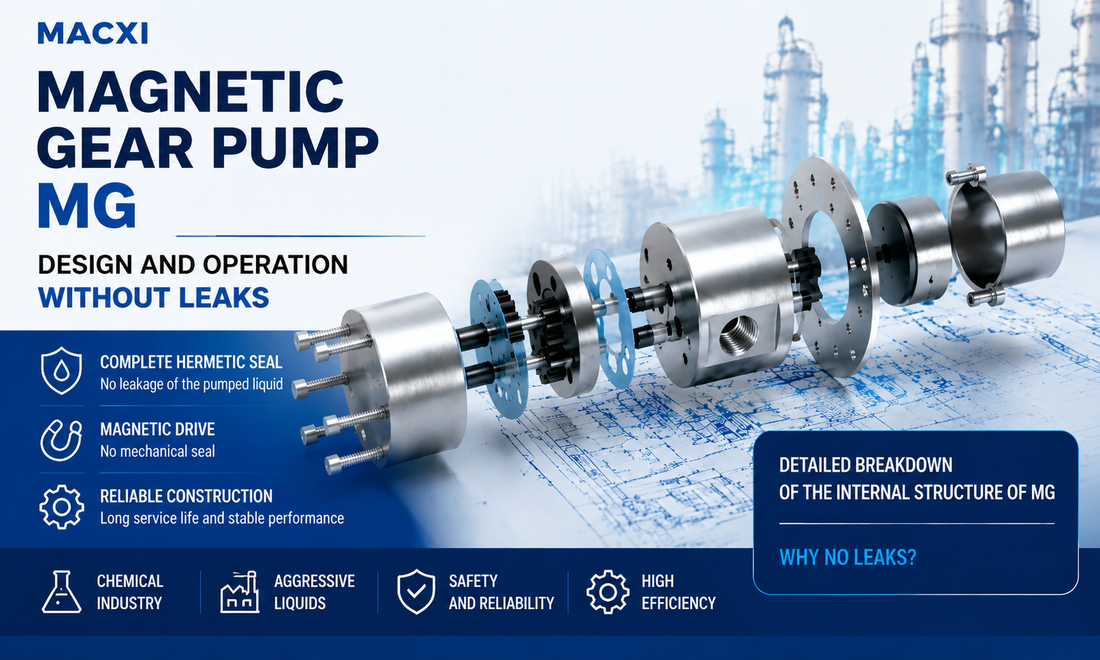

2. MG Pump Design
The MG pump design includes the following main elements:
- pump casing
- drive gear
- driven gear
- internal rotor
- magnetic coupling
- isolating canister
- rear cover
- sealing elements
- fasteners
Each component performs a specific function in the process of fluid pumping and torque transmission.
3. Functions of Main Components
The pump casing forms the working chamber and provides mechanical strength to the structure.
The drive and driven gears ensure positive displacement of the fluid and the formation of a stable flow.
The internal rotor and magnetic coupling transmit torque without physical contact, which eliminates wear of mechanical connections.
The isolating canister is a key element of the design, completely separating the working medium from the external part of the pump.
Sealing elements are used for additional sealing of the casing connections.
4. Principle of Leak-Free Operation
The main feature of the MG pump is the absence of mechanical seals.
Rotation is transmitted through a magnetic field between the external and internal rotors.
Between them is a hermetically sealed isolating canister that completely isolates the pumped fluid from the external environment.
Thus, the design lacks a through-shaft, which is usually the main cause of leaks in traditional pumps.
5. Advantages of the MG Design
The design of the magnetic gear pump offers the following advantages:
Complete hermeticity
Absence of working fluid leaks
Increased safety when working with aggressive media
Reduced maintenance costs
Extended equipment lifespan
Stable fluid delivery
6. Areas of Application
MG magnetic gear pumps are used in the following areas:
chemical industry
laboratory systems
pharmaceutical manufacturing
dosing systems
production of coatings and resins
pumping solvents and aggressive liquids
Conclusion
The MG magnetic gear pump represents a modern industrial solution that ensures complete hermeticity and high operational reliability.
Thanks to the magnetic coupling and isolating canister, the design eliminates leaks and makes the pump an optimal choice for working with hazardous and aggressive fluids.
