Precision Internal Design
High-precision components manufactured from quality materials ensure reliable operation and a long service life.
Macxi Micro Magnetic Gear Pump 0.60 cm³/rev
Leak-Free Operation | High Precision
Magnetic drive technology ensures fully sealed operation
Consistent fluid delivery with minimal deviation
Materials resistant to aggressive media
OEM support and configurations tailored to your requirements
Technical Specifications
Displacement
0.6 cc/rev
Pump Body Material
316L Stainless Steel
Gear Material
PEEK (Polyether Ether Ketone)
Seal Material
PEEK (Polyether Ether Ketone)
Bushing Material
PEEK (Polyether Ether Ketone)
Bearing Material
Operating Temperature Range
-40℃~70℃
Maximum Pressure (bar)
20 bar
Differential Pressure with Water (bar)
8 bar
Applications
Chemical Processing
Pharmaceutical Manufacturing
Precision Dosing Systems
Food Processing
Energy Industry
High-Pressure Equipment

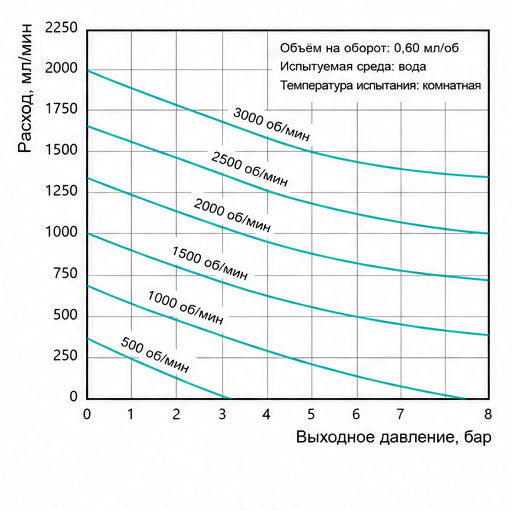

Performance Curve for This Product
Performance Curves for Models in This Series with Different Displacements
Optional Materials
Pump Body Material
Gear Material
Seal Material
Bearing Material
/
Customizable Temperature Range
-40℃~70℃
Custom-Engineered Solutions
- We can recommend an optimal pump configuration based on your specific operating conditions.
- Materials
- Interfaces
